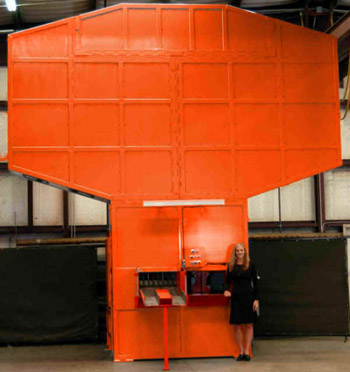

Casting Cooling Tower

Features

  • Heat is contained within the walls of the machine.
  • Vertical design minimizes floor space requirement.
  • Minimize casting damage during the cooling cycle.
  • Operation is light curtain protected.
  • Loading/unloading station are at ergonomically friendly positions.
  • Easy maintenance access.

Specifications

Estimated Input Temp. 900°F (482°C)
Estimated Output Temp. 100°F (38°C)
Air Flow 32,000 cfm (906 cmm)
Time in Cooling Zone 17 Min
   (At 2 Cycles Per Minute)

Click to enlarge.

The drawing (above) requires Adobe Acrobat Reader to view.
