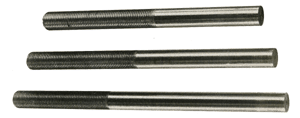

Large Ejector Pins

These pins are designed for your large ejector pin requirements and are accurately machined in a complete range of lengths.

Made from high carbon steel and centerless ground; each pin is furnished with two semi-finished hex nuts and two semi-finished hex jam nuts.

For applications where smaller pins are desired, see the separate catalogue sheet for a complete listing.

Please refer to the Typical Permanent Mold Assembly sheet and individual catalogue sheets fro all your permanent mold component requirements.

Part Number	A	B	C	Reamer Size
99065	0.5000	6	1/2 - 20 x 3	0.505
99066	0.5000	7	1/2 - 20 x 3	0.505
99067	0.5000	8	1/2 - 20 x 3	0.505
99068	0.5000	9	1/2 - 20 x 3	0.505
99069	0.5000	10	1/2 - 20 x 3	0.505
99070	0.5000	11	1/2 - 20 x 3	0.505
99071	0.5000	12	1/2 - 20 x 3	0.505
99072	0.5000	13	1/2 - 20 x 3	0.505
99073	0.5000	14	1/2 - 20 x 3	0.505
99080	0.6250	8	5/8 - 18 x 3	0.630
99081	0.6250	9	5/8 - 18 x 3	0.630
99082	0.6250	10	5/8 - 18 x 3	0.630
99083	0.6250	11	5/8 - 18 x 3	0.630
99084	0.6250	12	5/8 - 18 x 3	0.630
99085	0.6250	13	5/8 - 18 x 3	0.630
99086	0.6250	14	5/8 - 18 x 3	0.630
99087	0.6250	15	5/8 - 18 x 3	0.630
99088	0.6250	16	5/8 - 18 x 3	0.630
