Mount Spacers

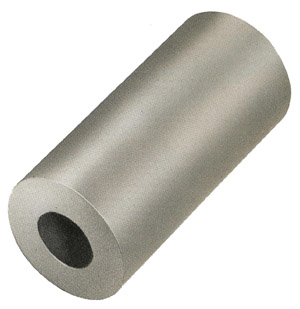

Mold mounting spacers are accurately machined from cold drawn seamless steel tubing.

Any length mold mounting space can be obtained by different combinations of stock spacers. For spacer lengths of 6" or less we recommend the 1 1/4" O.D. size with 1/2" mounting bolts, over 6" we recommend the 2" O.D. with 3/4" mounting bolts.

Please refer to the Typical Permanent Mold Assembly sheet and individual catalogue sheets for all your permanent mold component requirements.

Part Number

A

B

C

Bolt Size Used With

96550

0.500

1 1/4

5/8

1/2

96551

1.000

1 1/4

5/8

1/2

96552

3.000

1 1/4

5/8

1/2

96553

5.000

1 1/4

5/8

1/2

96560

0.500

2

7/8

3/4

96561

1.000

2

7/8

3/4

96562

3.000

2

7/8

3/4

96563

5.000

2

7/8

3/4
