Standard Mount Plates

Standard size mount plates are used for mounting permanent molds. However, if larger size mount plates are needed, we suggest you consider our oversize mount plates which are designed for "extra long" molds.

Mold mount plates are fully machined and ground on all surfaces from carbon steel plate.

Please refer to the Typical Permanent Mold Assembly Sheet and individual catalogue sheets for all your permanent mold component requirements.

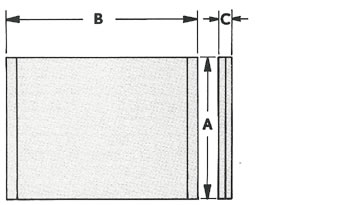

Part Number	Machine Size	A	B	C	Unit Weight
95986	8 x 12	8	11 7/8	3/4 (.65)	19.2 lbs.
95987	12 x 18	12	17 7/8	1 (.90)	60 lbs.
95988	18 x 24	18	23 7/8	1 1/4 (1.15)	156 lbs.
95992	24 x 30	24	29 7/8	1 1/4 (1.15)	254 lbs.
95898	12 x 18	12	17 7/8	1 1/2	93 lbs.
82335	18 x 24	18	23 7/8	1 1/2	171 lbs.
