Back Plates

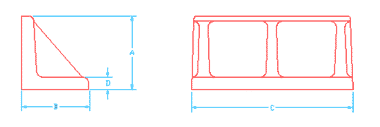

Back plates are made from 30 class gray iron and are designed to be used with pouring cups.

Part
Number

Cup
Capacity

A

B

C

D

Unit
Weight

CUP A-15

1.5 - 2.0 lbs.
(0.7 - 0.9 kg)

2.50
(6.35cm)

2.00
(5.08cm)

4.50
(11.43cm)

.25
(0.64cm)

2.4 lbs.
(1.1kg)

CUP A-30

3.0 - 9.0 lbs.
(1.4 - 4.1 kg)

3.00
(7.62cm)

2.75
(6.99cm)

6.63
(16.84cm)

.50
(1.27cm)

5.5 lbs.
(2.5kg)

CUP A-120

12 - 25 lbs.
(5.4 - 11.3 kg)

4.25
(10.80cm)

3.25
(8.26cm)

7.63
(19.38cm)

.50
(1.27cm)

9.0 lbs.
(4.1kg)

CUP A-300

30 - 60 lbs.
(13.6 - 27.2 kg)

6.13
(15.57cm)

3.25
(8.26cm)

9.25
(23.50cm)

.50
(1.27cm)

15.0 lbs.
(6.8kg)
