Leader Pin Bushings

These precision machined leader pin bushings are specifically designed to be used with Stahl leader pins. Made from high grade meehanite iron, they will provide fast and accurate alignment between the two mold halves. With the use of a retaining nut and specially designed shoulder they can be easily replaced as mold wear dictates, there-by providing consistent alignment throughout the life of a mold.

With internal diameters from .500" to 1.000" these bushings can be used in the construction of both small and large permanent molds. Each bushing comes with one jam nut.

Please refer to the Typical Permanent Mold Assembly sheet and individual catalogue sheets fro all your mold component requirements.

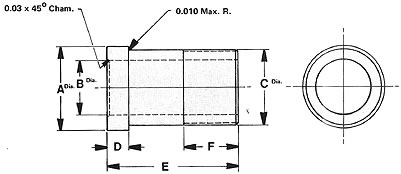

Part Number

Dia

A

B

C

D

E

F

96524

1/2

1.000

.500

.875

.250

1.75

7/8 - 14 x 1.0

96525

3/4

1.250

.750

1.125

.250

1.75

1 1/8 - 12 x 1.0

96526

1

1.500

1.000

1.375

.375

2.37

1 3/8 - 12 x 1.0

96545

1/2

1.000

.500

.875

.250

2.75

7/8 - 14 x 2.0

96546

3/4

1.250

.750

1.125

.250

2.75

1 1/8 - 12 x 2.0

96547

1

1.500

1.000

1.375

.375

2.75

1 3/8 - 12 x 2.0
