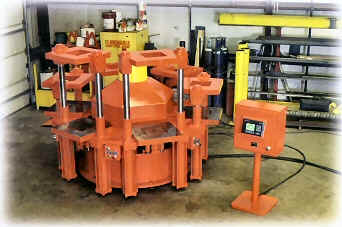

Six Station Non-Tilting Rotary

Features

Indexing system uses a Geneva drive with an epicyclical gear motor and a variable frequency invertor. This allows smooth indexing speed adjustment.
Control utilizes the Allen Bradley SLC series PLC and a color touch screen.
Easily interfaces with ladler or casting catcher.

Specifications

Clamping Pressure	30,000 lbs.	(13,607.7 kg.)
Max. Mold Size	16 x 24 x 30 in.	(40.6 x 60.9 x 76.2 cm)
Max. Mold Weight	1,500 lbs.	(680 kg.)
Ram Stroke	24 in	(61 cm)
Daylight Opening	16.5 in.	(42 cm)
Machine Weight	20,500 lbs.	(9,298.6 kg.)
Ejection Stroke	2 in.	(5 cm)

Click to enlarge.

The drawing (above) requires Adobe Acrobat Reader to view.
