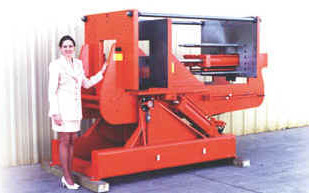

3HSX Tilt-Pour Permanent Mold Casting Machine

Gravity Die Casting Machine

Features

Low maintenance due to few moving parts, heavy duty, rugged, and dependable.
Frame open on 3 sides, plus front and bottom, to facilitate use of core pulls in 5 directions.
Twin cushioned tilt cylinders provide a smooth tilting motion from start to stop.
Twin ram cylinders provide a safety factor, as well as extra holding pressure and better clamping balance.
Hydraulic power units available in manual, automatic, or with programmable controllers, sized to facilitate all available accessories at low operating pressure.

Specifications

Clamping pressure	58,900 lbs.	(26,717 kg.)
Max. mold size	40 x 42 in.	(102 x 107 cm)
Max. mold weight	4,000 lbs	(1.815 kg.)
Ram stroke	30 in.	(76.2cm)
Daylight opening	16.50 in.	(42 cm)
Pressure height center	14 in.	(35.6 cm)
Machine weight	9,800 lbs	(4,445 kg.)
Tie bar size	2 in. dia	(5.08 cm)
Tilt speed	7 sec.

Options

Manual Swing In Casting Catcher
Powered Swing Casting Catcher
Front Ejector
Proportional Tilt
Custom Platen Drilling or Sizes
